Product Name：Ethyl silicone oil



Product keywords: low temperature resistant silicone oil, lubricating silicone oil (machine or human body), friction resistant silicone oil, high performance release agent, electrical insulation silicone oil



English name：Ethyl Siloxane Fluid，ethyl silicone oil

CAS No.：63148-61-8

Molecular formula: C4_n+12H30+10_nSi_n+2O_n+1

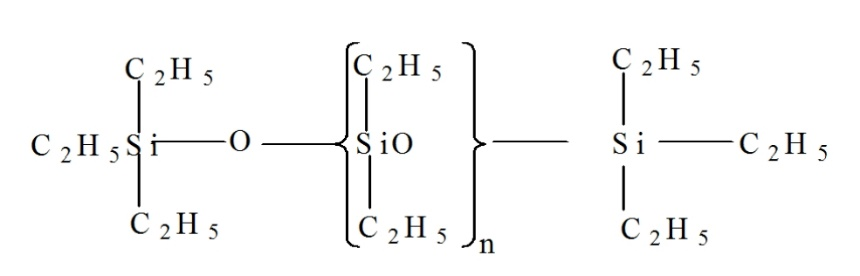

Molecular structure:

1. Product description:

Ethyl silicone oil is a high-performance silicone material with lubrication and dielectric properties. It is widely used in many industrial fields as a release agent, insulating material, lubricant and special additives. This product is a colorless to light yellow transparent liquid with low freezing point, moderate relative density, high flash point, non-toxic and non-corrosive characteristics.



2. Physical and chemical properties:

Appearance: colorless to light yellow transparent liquid

Freezing point: <-80℃

Relative density: 0.95～1.05

Flash point: >265℃ (open cup)

pH value: 5～7

Solubility: Soluble in organic solvents such as toluene, ether, chloroform, etc., and can be mixed with petroleum products at will



3. Product characteristics:

1) lubrication performance: Ethyl silicone oil has low surface tension and can form a uniform lubricating film on various surfaces to reduce friction and wear.
2) dielectric properties: It has good insulation properties and is suitable for insulating materials in the electrical industry.
Temperature stability: The operating temperature range is -80～150℃, the temperature viscosity coefficient is small, and it can maintain stable performance in a wide temperature range.
3) Low volatility: low volatility and long service life.
4) Non-toxic and non-corrosive: no corrosion to metal, no toxicity to human body, safe to use.



4. Product use:

1) Release agent: used for demoulding of various rubber and plastic products to improve production efficiency and product quality.

2) Insulating material: widely used as insulating material in the electrical industry to ensure the safe operation of electrical equipment.

3) Lubricating oil: as precision instrument oil, hydraulic oil, special lubricating oil, etc., to reduce friction and wear of mechanical parts.

4) Additive: as an additive for cream base, lipstick and mascara in cosmetics; as a plasticizer in rubber products; as a dust-proof additive in pigment manufacturing, etc.

5) Electrical industry: insulating material, dielectric liquid

6) Other uses: can also be used as a heat transfer agent, shock absorber base, reinforcing fiber for core wire fabric in the tire industry, etc.



5. Usage:

1) Use of release agent: According to the specific process requirements, apply ethyl silicone oil evenly on the mold surface, and after it dries, you can perform injection molding or pressing operations.

2) Use of lubricating oil: According to the equipment requirements, add ethyl silicone oil to the lubrication system to ensure the normal operation of the equipment.

3) Use of additives: According to the product formula requirements, add ethyl silicone oil to the raw materials in a certain proportion, and use it after mixing evenly.



6. Precautions:

Control the amount of addition: Avoid excessive addition that leads to performance degradation or cost increase.

Full stirring: Before adding ethyl silicone oil, the mixture needs to be fully stirred to ensure that it is evenly dispersed.



7. Packaging and storage:

1)Brand: IOTA

2)Packaging: This product is packaged in plastic-coated iron barrels or plastic barrels, and different specifications of packaging are provided according to customer needs.

3)Storage conditions: It should be stored in a cool, dry, well-ventilated place, avoiding direct sunlight and high temperature environment.

4)Safe operation: During use, relevant safety operating procedures should be followed to avoid contact with skin and eyes. In case of accidental contact, rinse immediately with plenty of water and seek medical attention.

5)Storage: Store in the original unopened container at 25°C or below, with a shelf life of one year. Expired products can only be used after passing the test.



Statement:

The information in this manual is compiled based on current knowledge and experience. The manufacturer reserves the right to make corrections or changes to this manual without prior notice. Before using this product, please read this manual carefully and follow the relevant usage specifications and precautions. If you have any questions or need further information, please contact the manufacturer.
